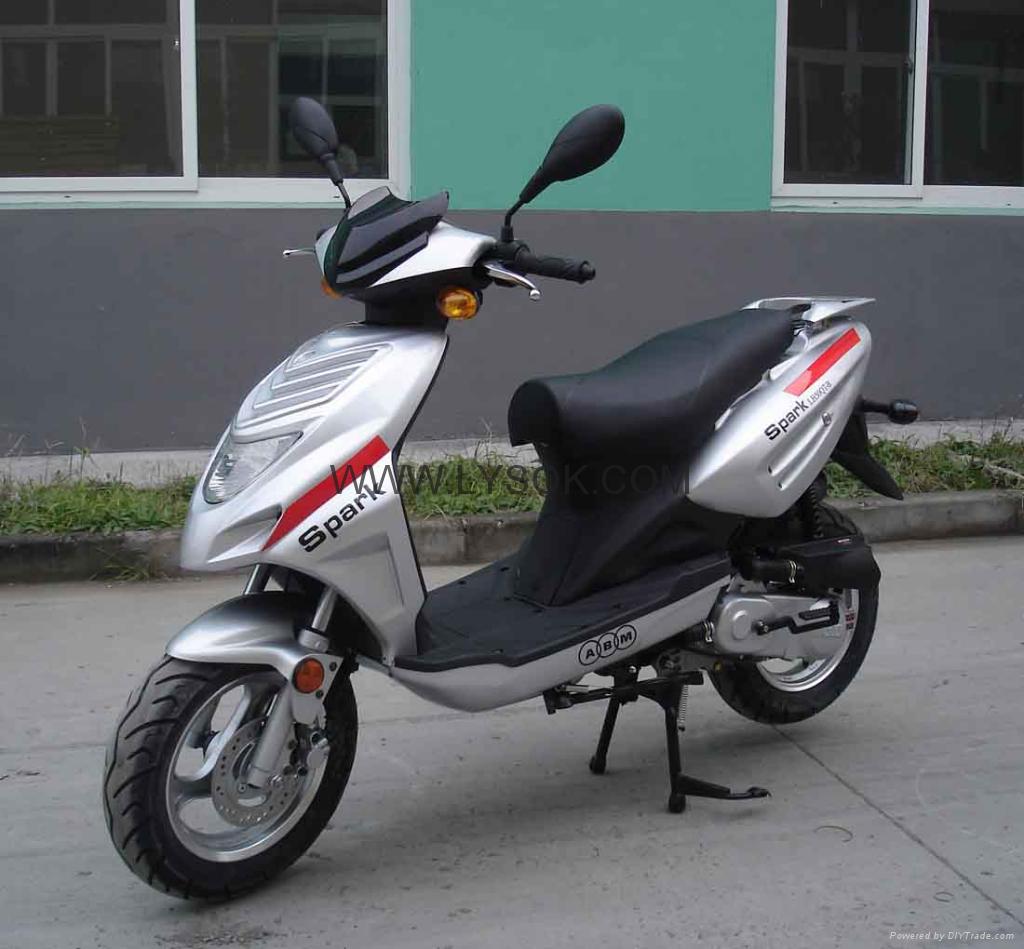

Motorcycle Scooter T17

Posted by Hielman Cordova at 10.03

T17 (49cc 50cc 125cc 150cc)








Dimension ((L×W×H)mm): 　1830×670×1080
Wheel base (mm): 1300
Min.Ground Clearance (mm): 110
Dry Weght: 90kg
Maximum weight capacity: 90kg
Engine Type: Single-cylinder,air-cooled,four-stroke
Engine model: 139QMB/152QMI/ 157QMJ
Bore×Stroke: 39.0mm×41.5mm/52.4mmx57.8mm/57.4mmx57.8mm
Displacement: 49.6mL/124.6ML/149.6ML
Maximum Power: 2.3/5.6/7.2kW/rpm（8000±500 r/min）
Maximum Torque: 2.9/7.8/8.3N·m/rpm（6000±500r/min）
Lubrication: Pressure/splash
Start: Electric start/Kick start
Ignition: C.D.I
Max. Speed (km/h): 45km/h /80km/h/85km/h
Fuel tank Maximum capacity： 4.5L
Economical Fuel Consumption (l/100km): ≤2.1L /100km
Front Type Size and Air Pressure: 120/70-12/250KPa
Rear Type Size and Air Pressure: 120/70-12/250Kpa
Front brake type： disk type
Rear brake type： drum type
